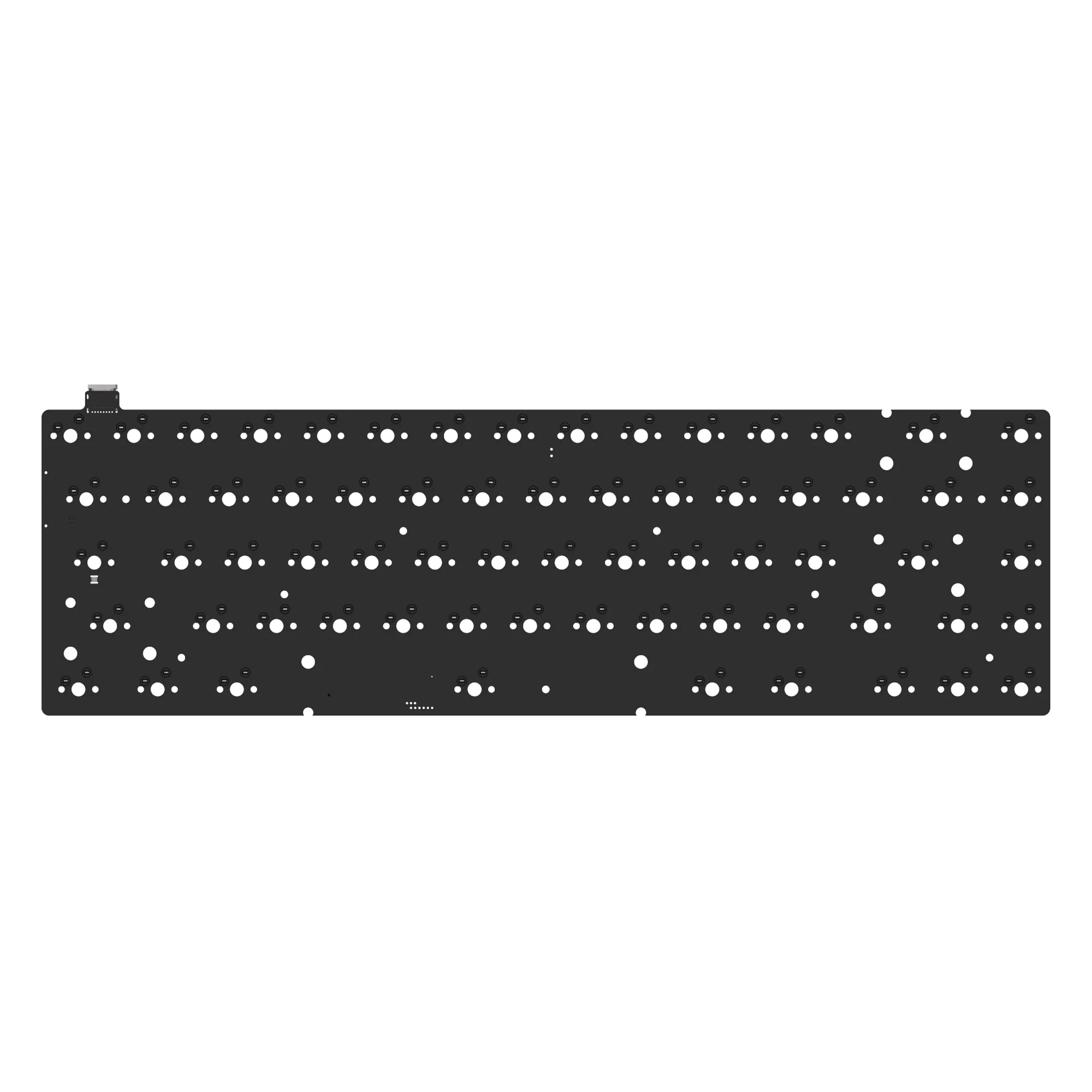

KBD67 Lite Bluetooth Dual-mode PCB

Specs

• Bluetooth 4.0
• Dual-mode
• PCB model：YD67ble
• USB-C interface
• Hot-swap (Gateron hot-swap sockets)
• Support programmable（https://ydkb.io）
• Do not support RGB, the capslock key has an indicator light
• Do not include battery



ConfigWeb：
https://ydkb.io/

Help Document：

https://ydkb.io/help/#/en/

Device Pairing：

https://ydkb.io/help/#/en/ble-series



KBD67 Lite Bluetooth Version Tutorial

Battery specifications

• Recommended battery purchase link：Click
• The battery interface model is PH2.0
• Lithium polymer battery
• Voltage 3.7V
