Update

  • Tofu60 2.0 WK White Case will arrive around Mar 10th (2024-2-21)
  • The pre-order colors will ship around Jan 25th(2024-01-12)
  • The pre-order colors will ship around the end of June (2023-06-08)

Layout

Solder version and hot-swap version kits have same layout

\"\"

Firmware

Disclaimer

\n

About the case:

1. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

2. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

3. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.

4. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.

Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides the three above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.

Click for more

\n
\n
\"\"
\n

Videos

\n
\n
\n
\n
\n
\n

Features

\"\"
\n

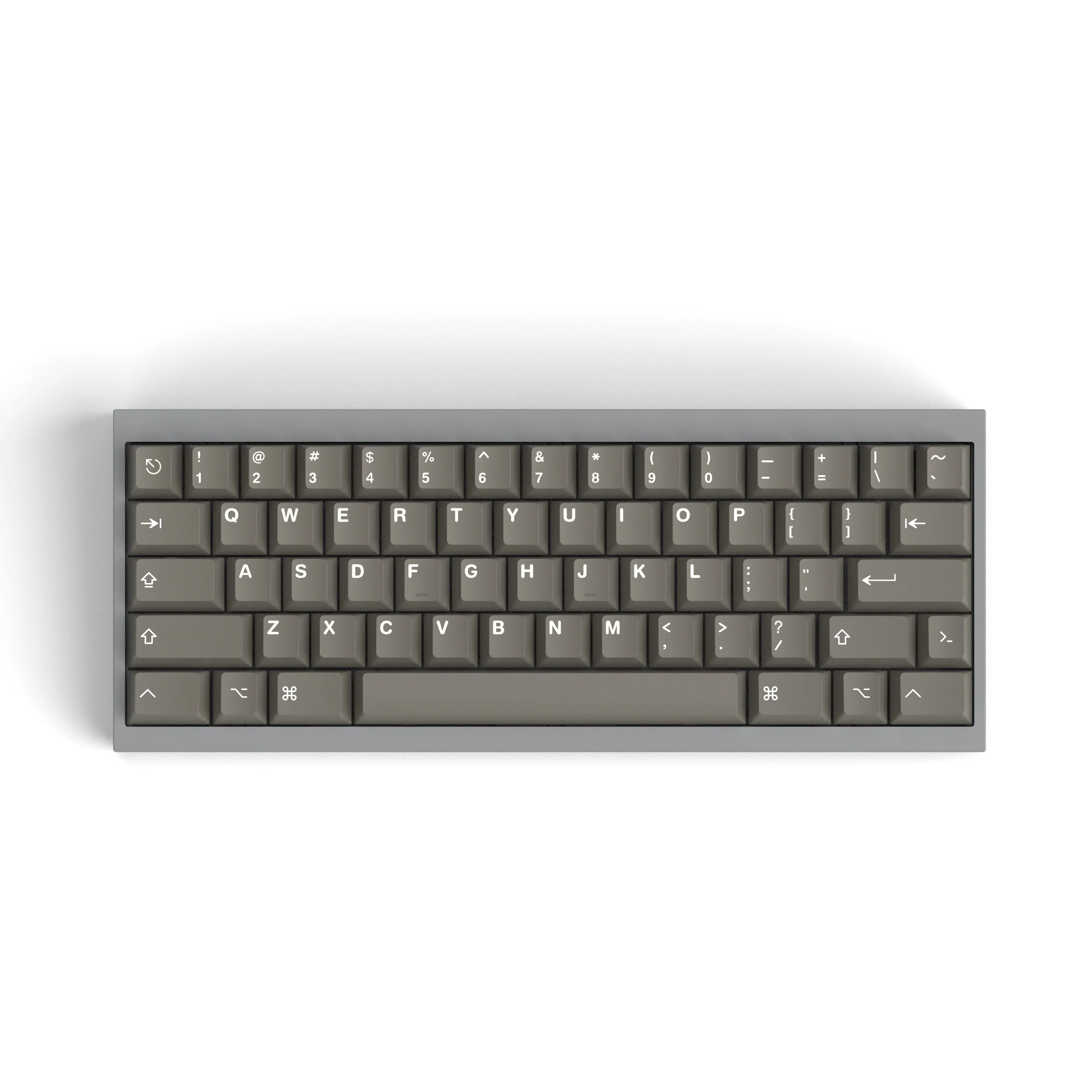

60% Layout

\n

Programmable and supports multiple layouts



\n
\n

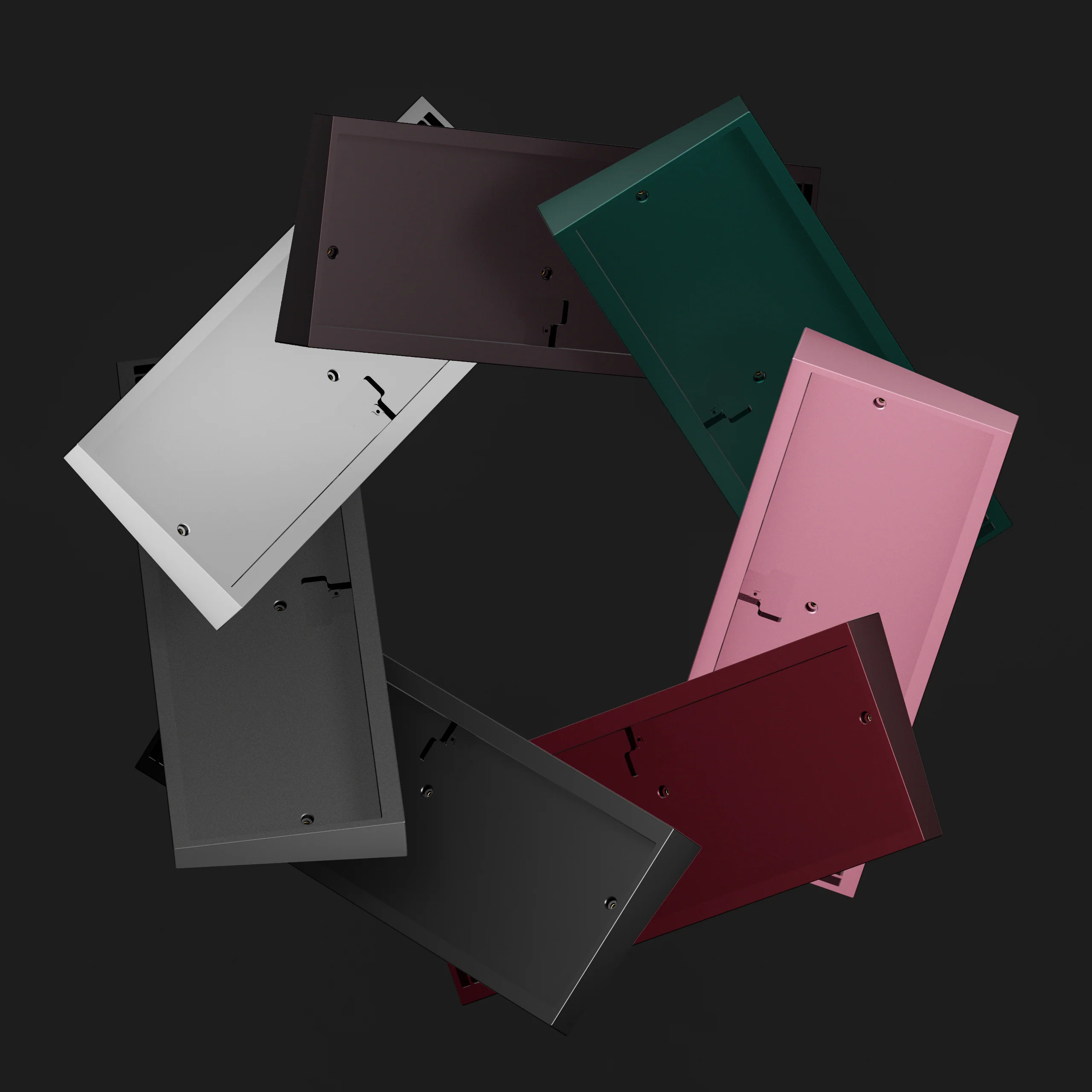

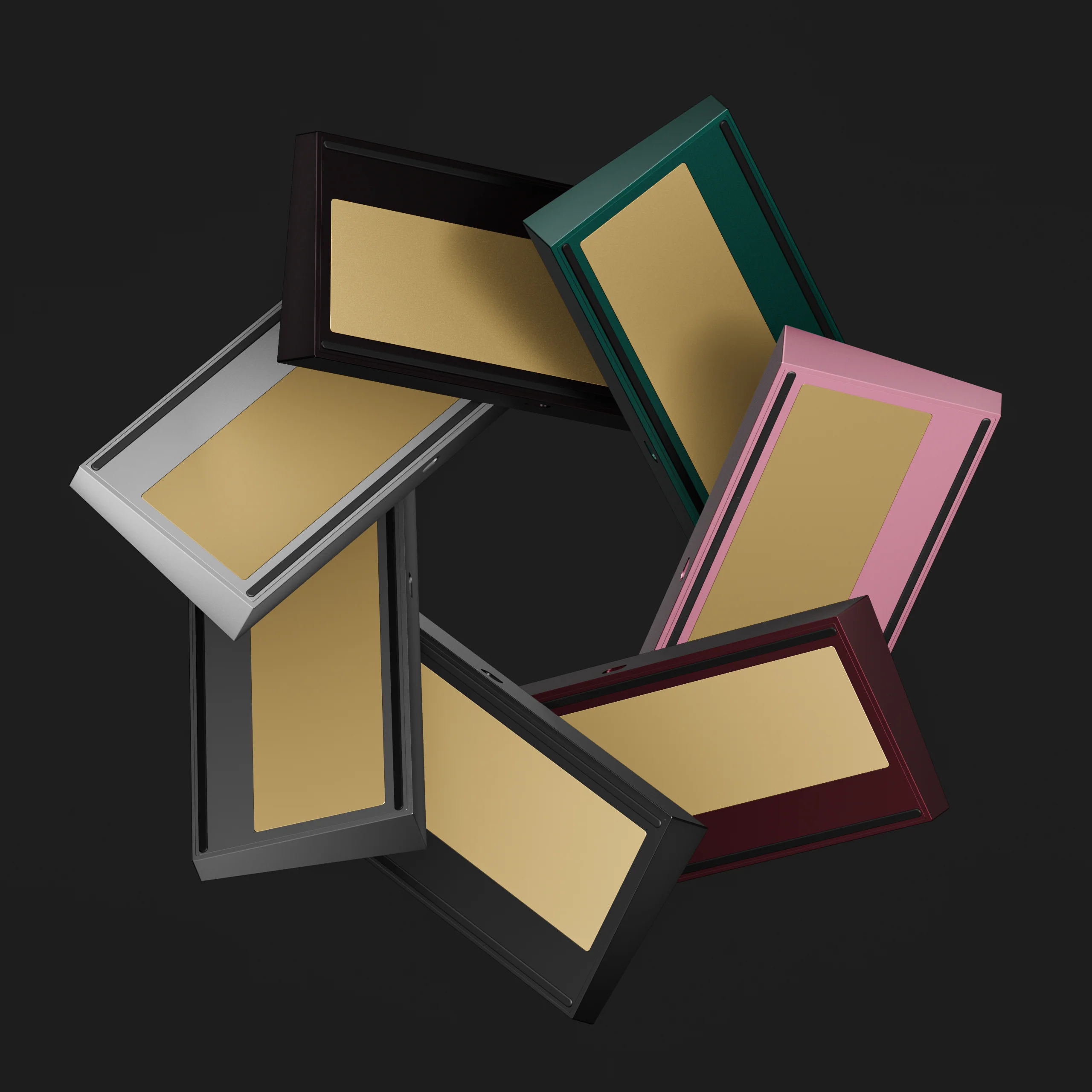

Multiple colors

\"\"

New Mounting style

\"\"
\n

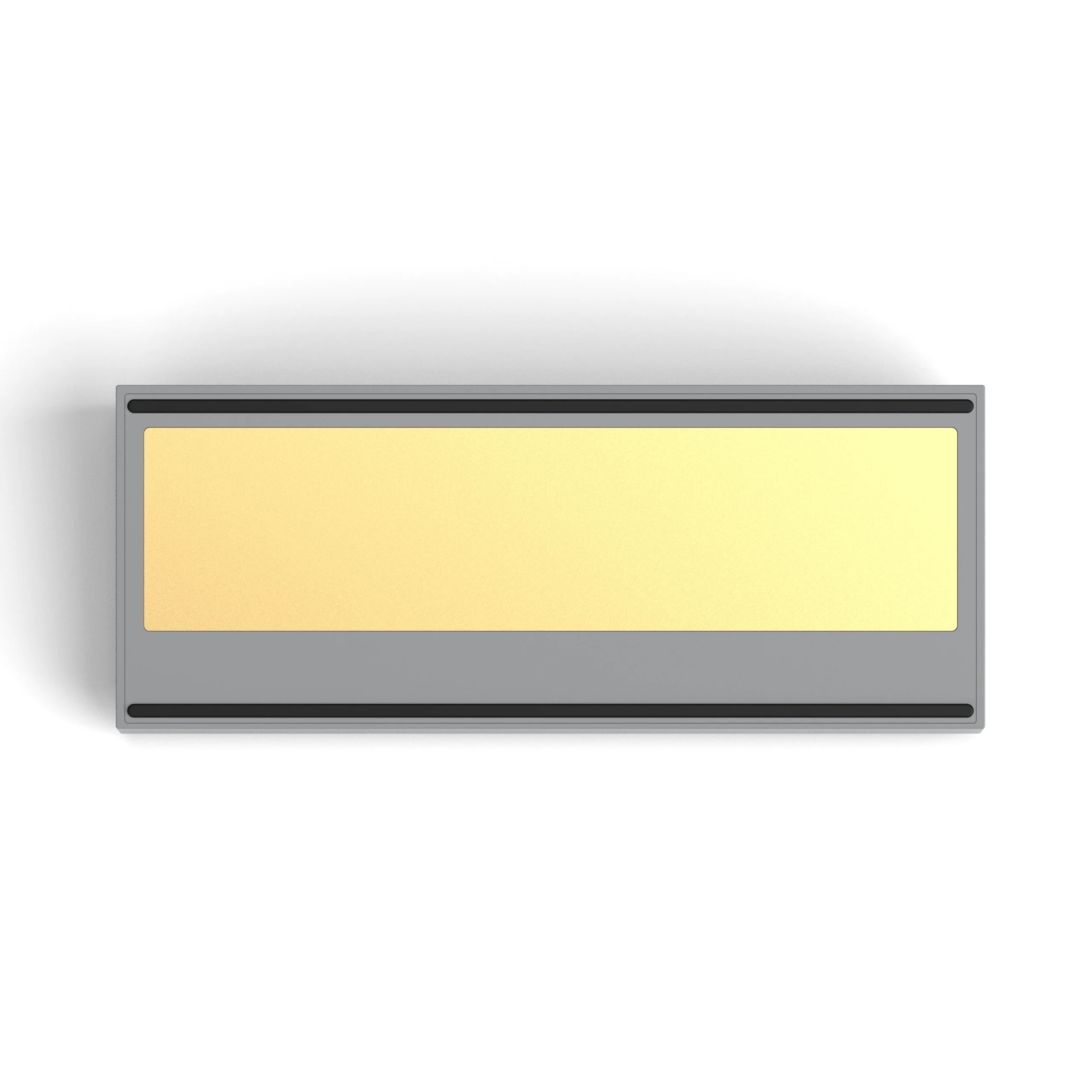

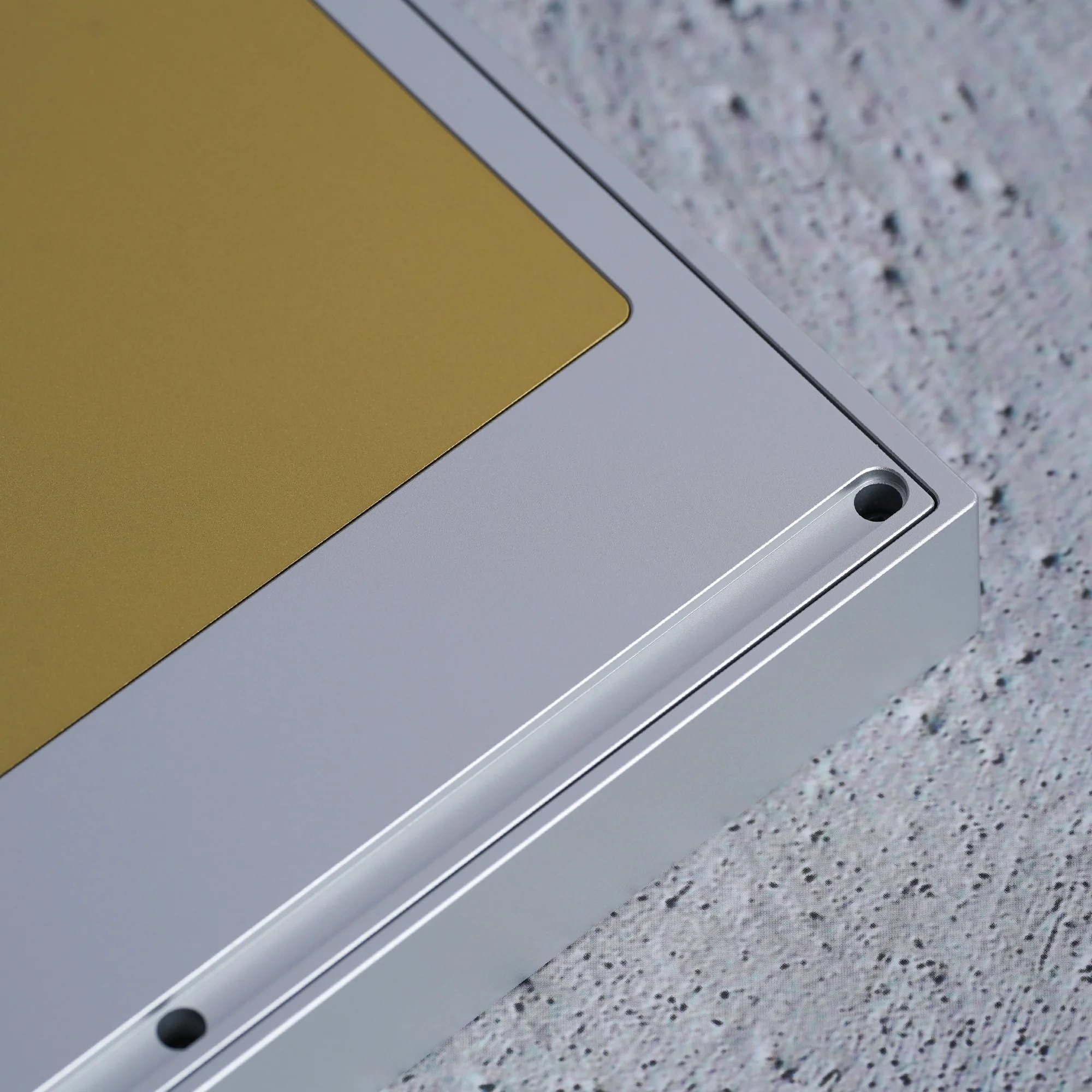

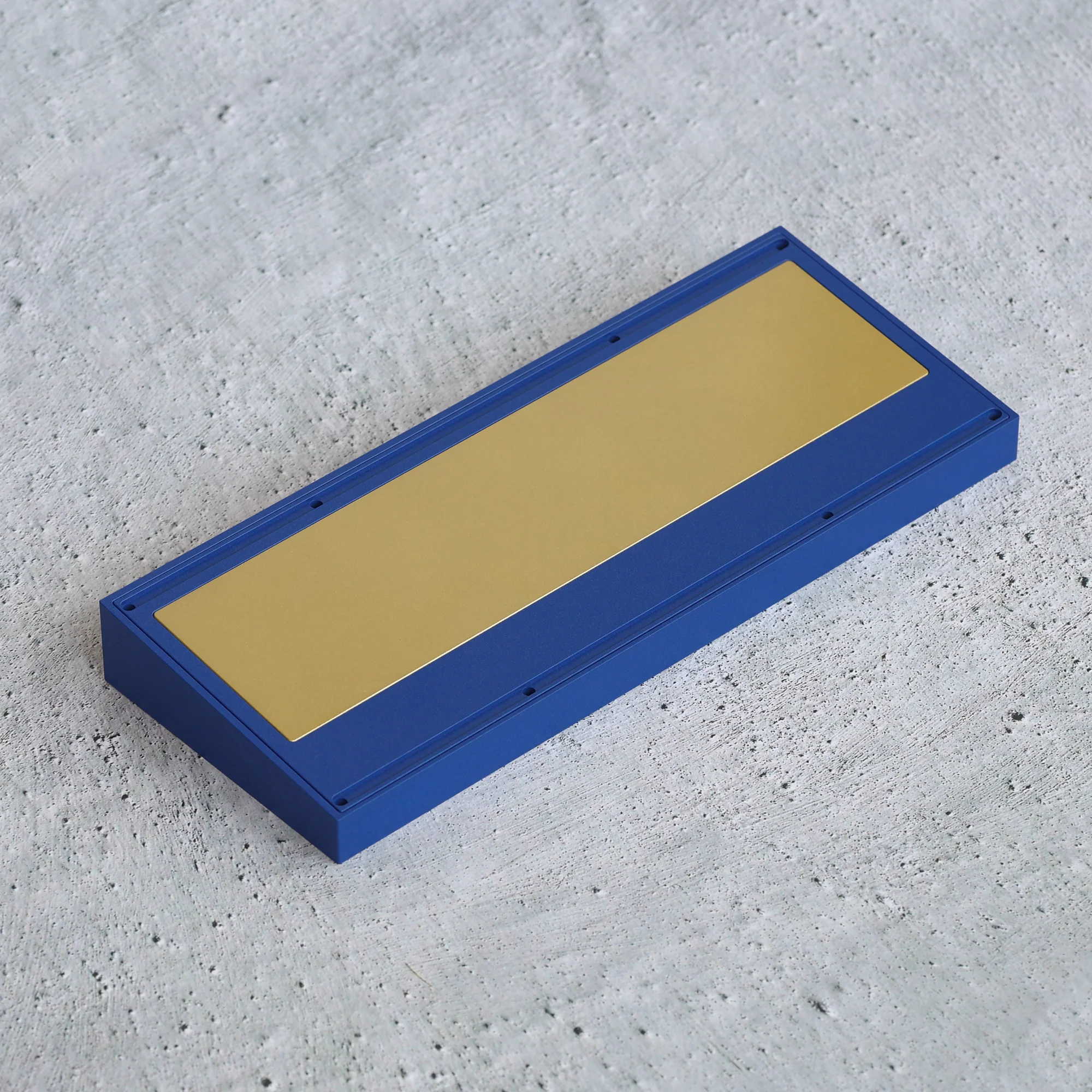

Brass Weight

\"\"

7° typing Angle

\"\"
\n
\n

Hot-swap PCB

\n

Supports multiple layouts

1.2 mm thickness with flex cuts

Open source QMK firmware that supports VIA online configurator

\n
\"\"

3 layouts available

\n

HHKB

\"\"
\n

WKL

\"\"
\n

WK

\"\"
\n

New design with 3 different mounting styles

\n

Tofu60 2.0 continues the design of the first generation. KBDfans does upgrade the structure this time.

The 2.0 version supports three different mounting styles: Top Mount, Gasket Mount, Silicone bowl Gasket mount（Available in 3 different hardness silicone bowls）, which meant to provide three different typing experiences on one keyboard.

\n
\n
\n

Top mount

\"\"
\n
\n
\n

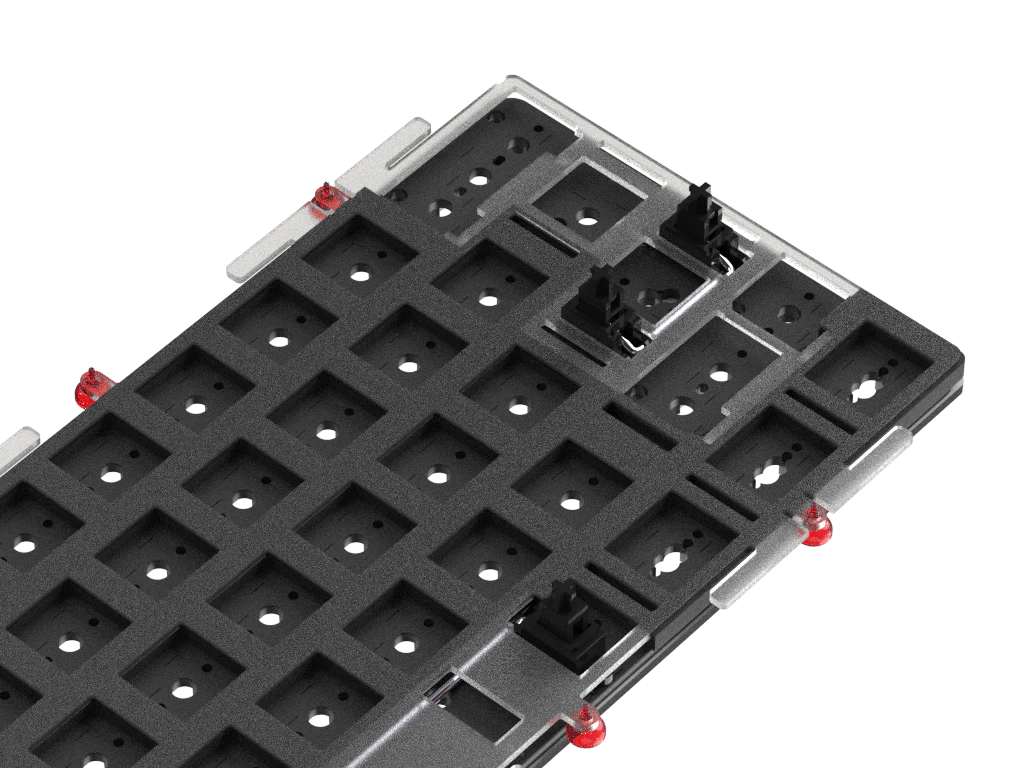

Silicone bowl gasket

\"\"
\n
\n

Silicone socks gasket

\"\"
\n

Explosion Diagram

\"\"
\n

Tofu60 2.0

\n

Pictures

\"\"
\n
\"\"
\"\"
\"\"
\"\"
\"\"
\n
\"\"
\"\"
\n
\"\"
\"\"
\"\"
\n
\"\"
\"\"
\"\"
\n
\"\"
\"\"
\"\"
\"\"
\n
\n
\"\"
\"\"
\"\"
\"\"
\n
\"\"
\"\"
\"\"
\"\"
\"\"
","image":["https://img.getkbdfans.shop/images/product/tofu60-2-0-1.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-2.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-3.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-4.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-5.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-6.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-7.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-8.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-9.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-10.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-11.png","https://img.getkbdfans.shop/images/product/tofu60-2-0-12.png","https://img.getkbdfans.shop/images/product/tofu60-2-0-13.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-14.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-15.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-16.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-17.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-18.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-19.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-20.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-21.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-22.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-23.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-24.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-25.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-26.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-27.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-28.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-29.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-30.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-31.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-32.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-33.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-34.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-35.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-36.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-37.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-38.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-39.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-40.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-41.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-42.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-43.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-44.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-45.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-46.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-47.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-48.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-49.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-50.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-51.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-52.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-53.jpg","https://img.getkbdfans.shop/images/product/tofu60-2-0-54.webp"],"sku":"tofu60-2-0","brand":{"@type":"Brand","name":"80% DIY KIT"},"offers":{"@type":"AggregateOffer","lowPrice":11.7,"highPrice":11.7,"priceCurrency":"USD","availability":"https://schema.org/OutOfStock","url":"https://getkbdfans.shop/products/tofu60-2-0","offerCount":57}}
HomeStore80% DIY KIT

Tofu60 2.0

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25
Product image 26
Product image 27
Product image 28
Product image 29
Product image 30
Product image 31
Product image 32
Product image 33
Product image 34
Product image 35
Product image 36
Product image 37
Product image 38
Product image 39
Product image 40
Product image 41
Product image 42
Product image 43
Product image 44
Product image 45
Product image 46
Product image 47
Product image 48
Product image 49
Product image 50
Product image 51
Product image 52
Product image 53
Product image 54

Tofu60 2.0

80% DIY KIT

Tofu60 2.0

Tofu60 was born in 2017 and has sold more than 40,000 units. It's a lot of people's first entry-level custom mechanical keyboard.
Tofu60 2.0 is a new beginning, the new changes will bring a new typing experience, and the new surface coating process can also bring more color possibilities.

Specifications

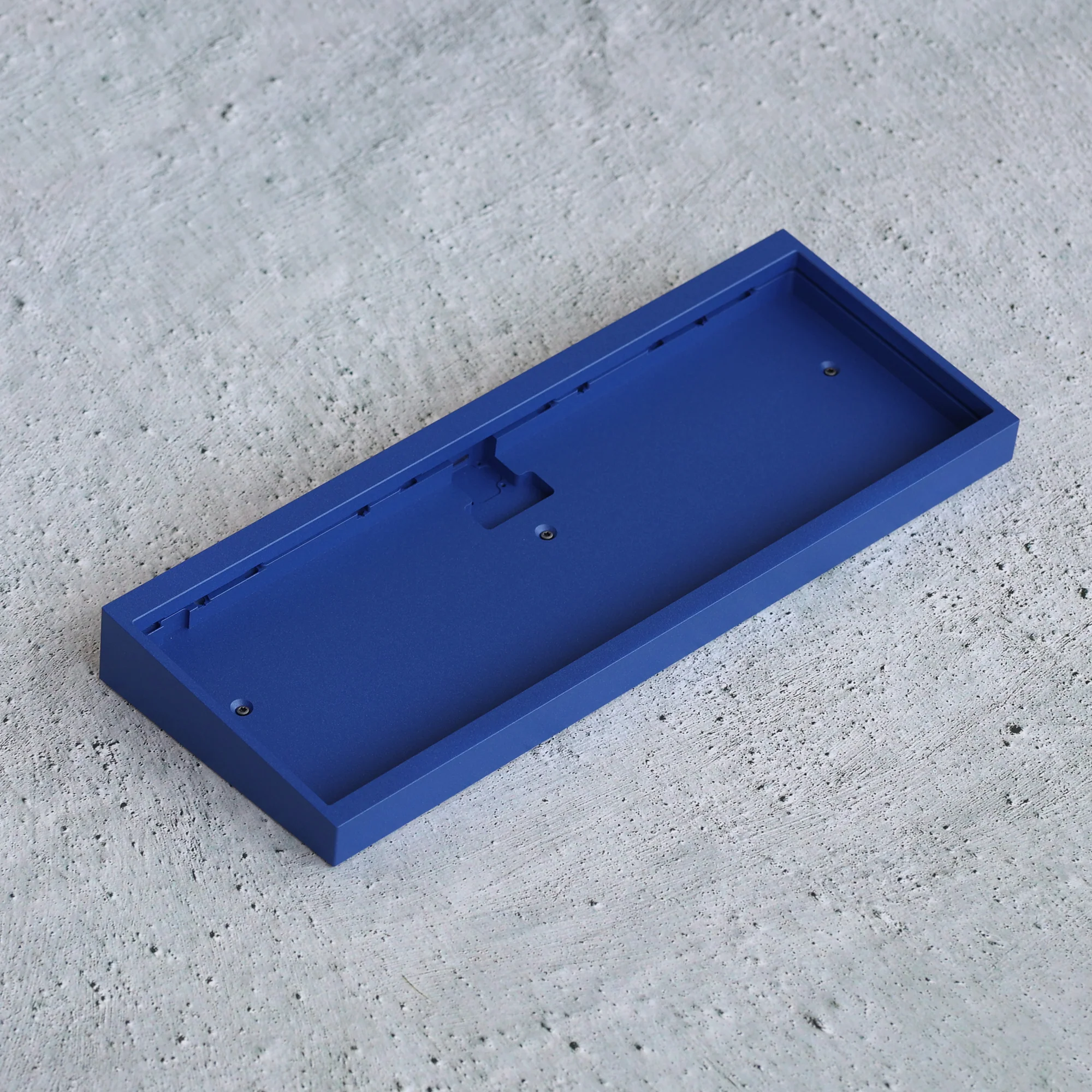

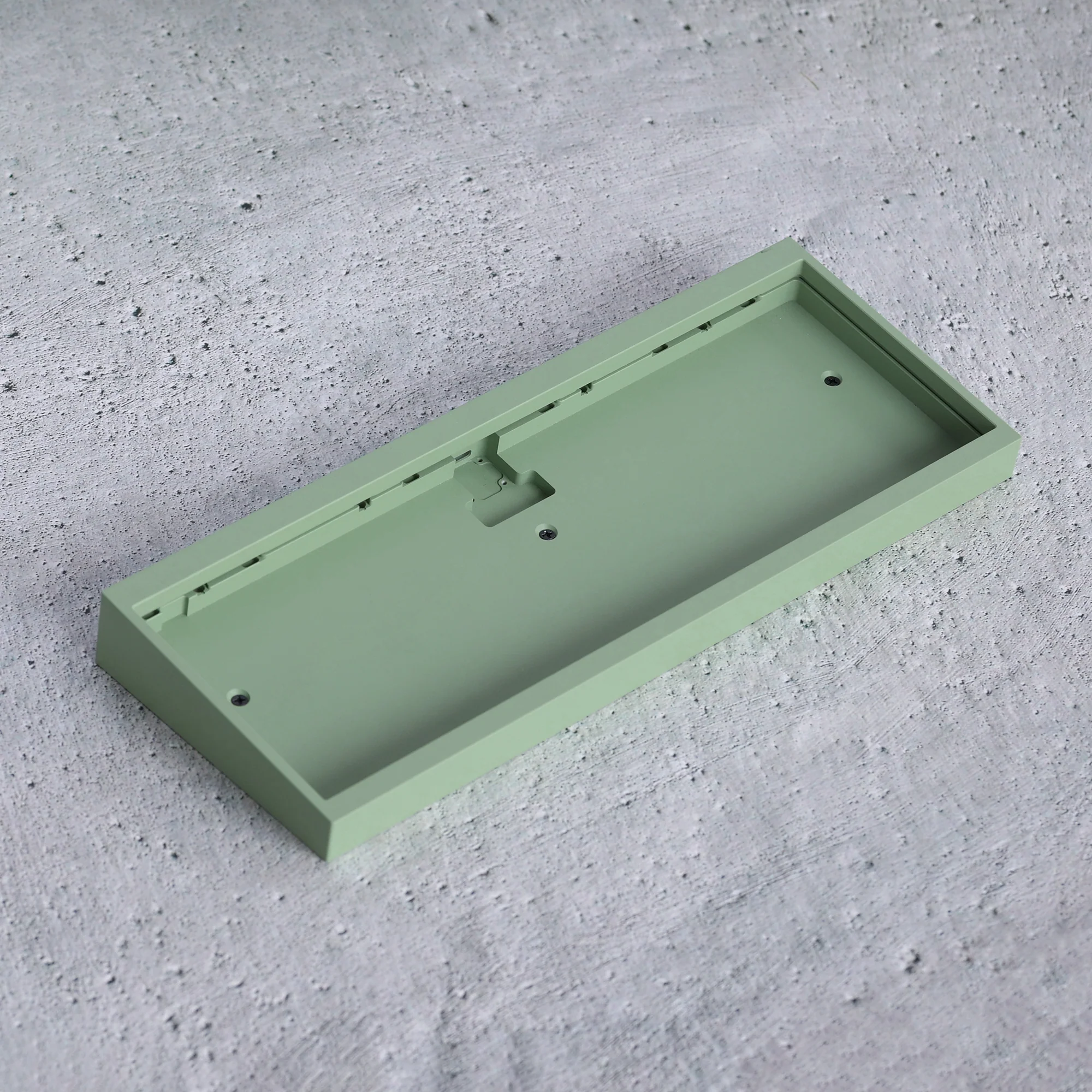

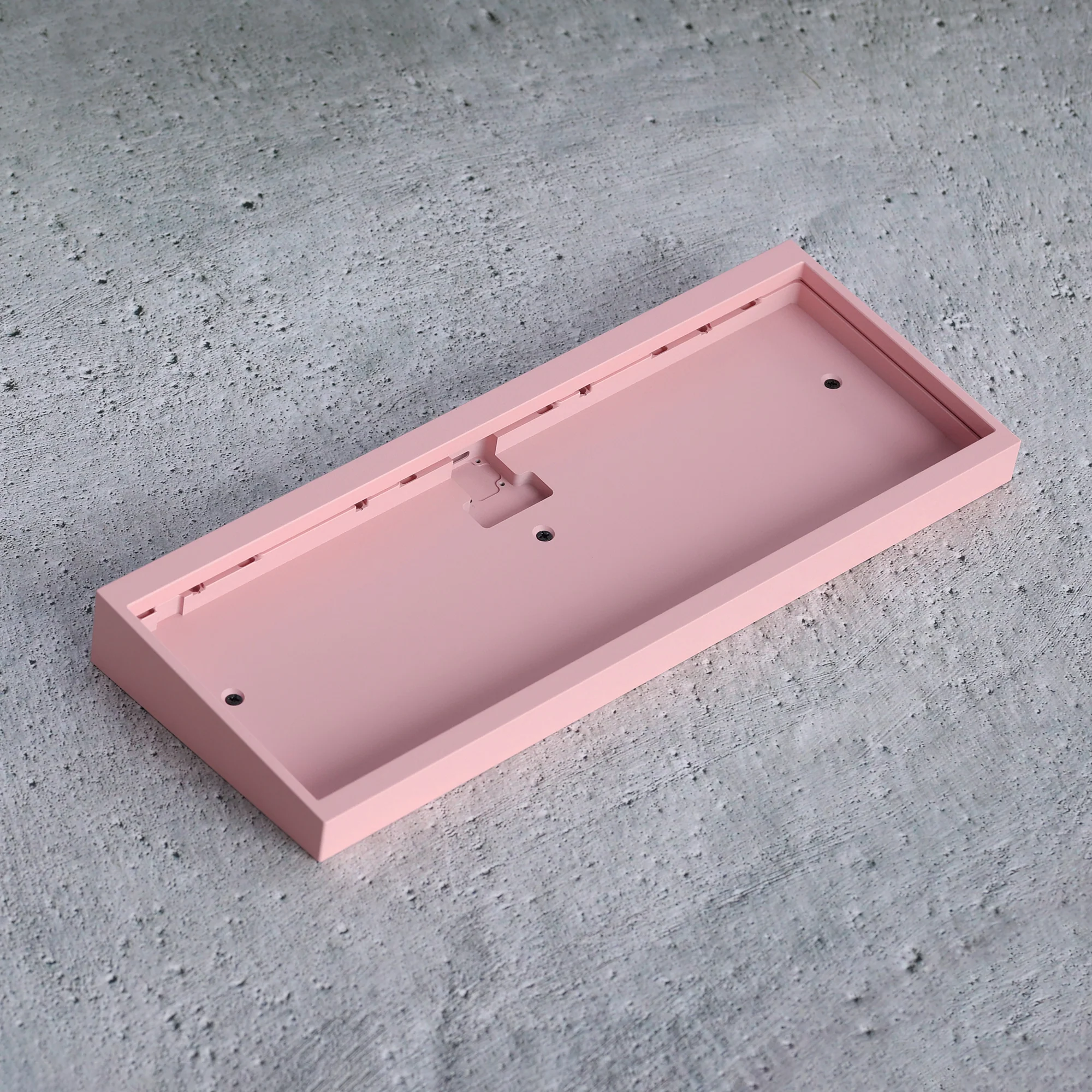

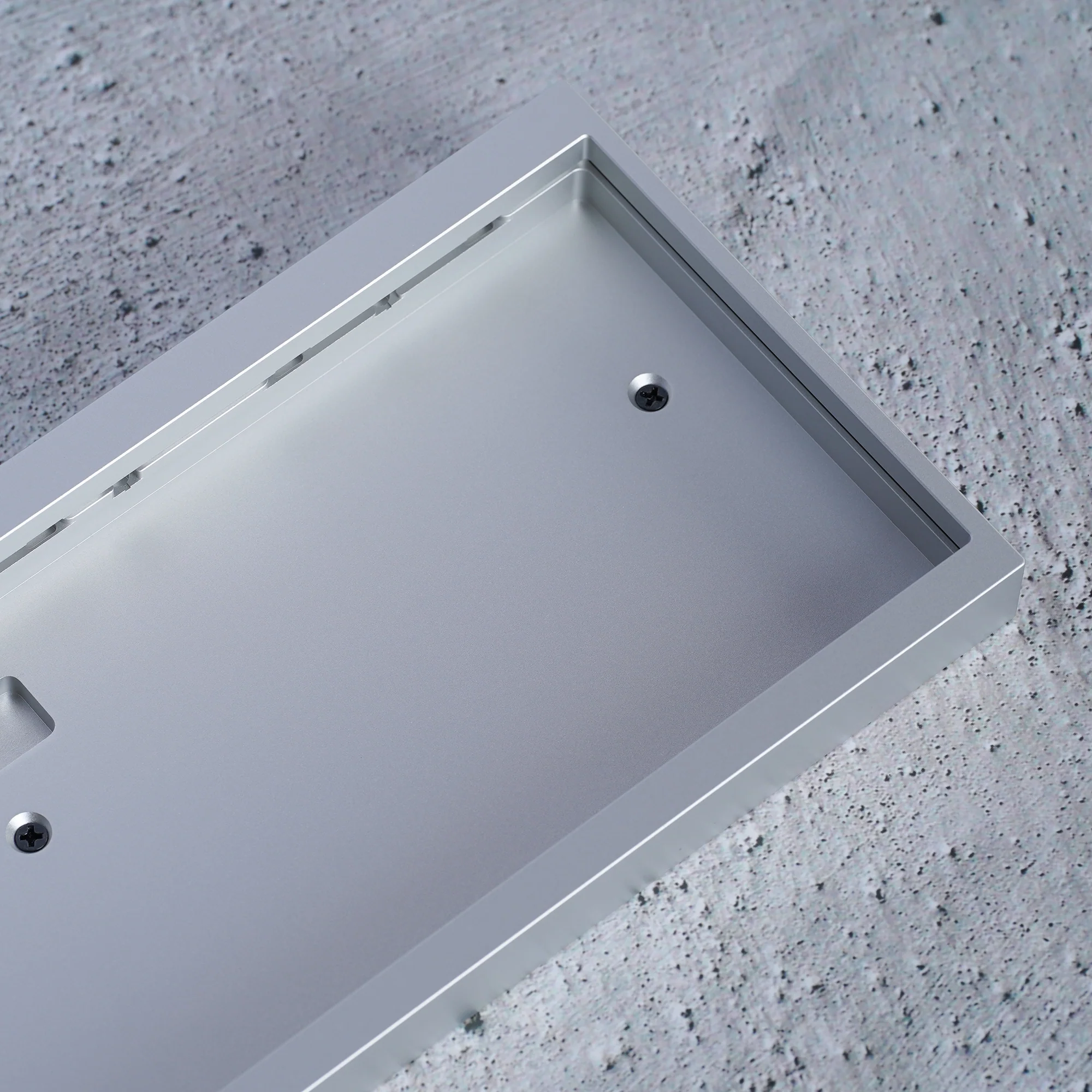

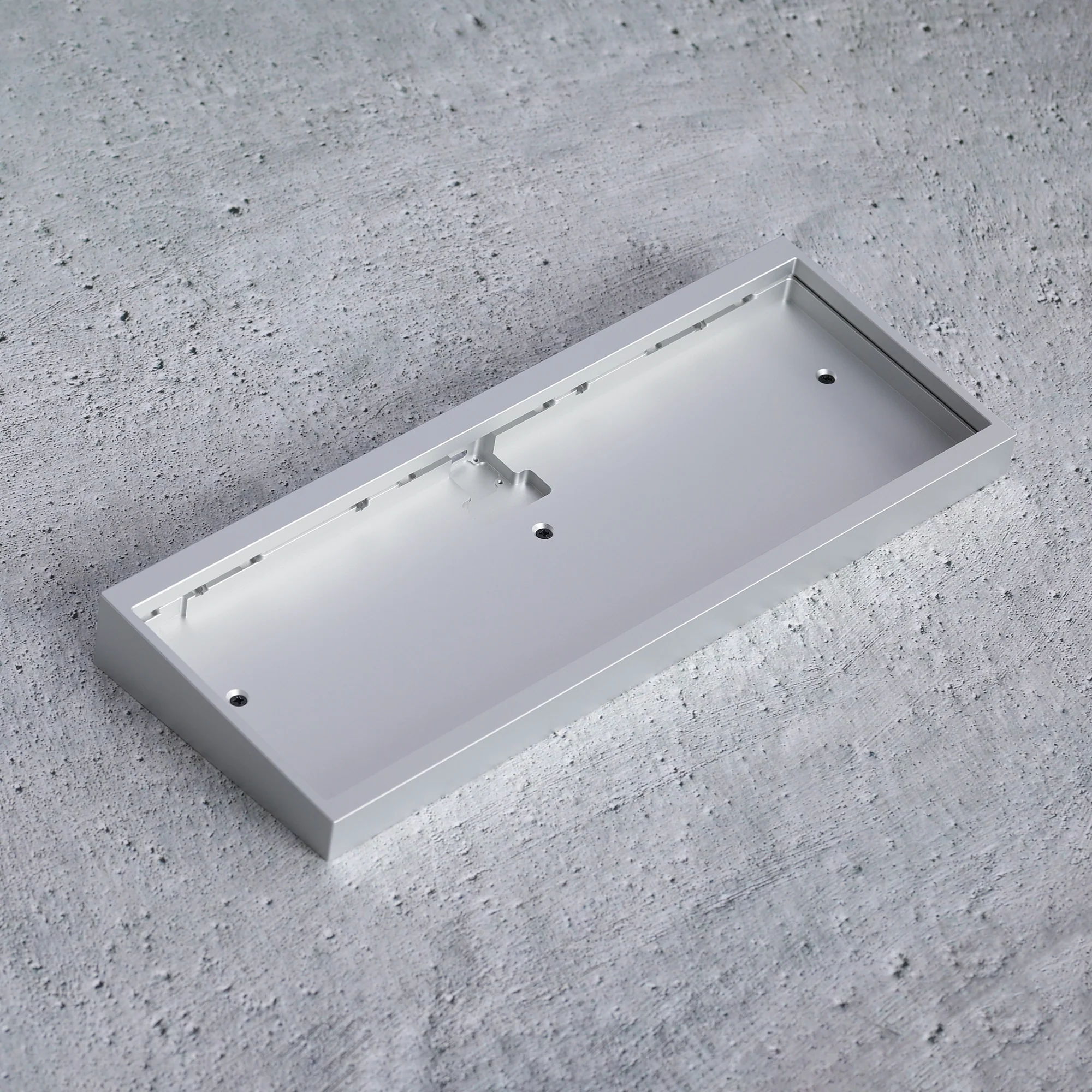

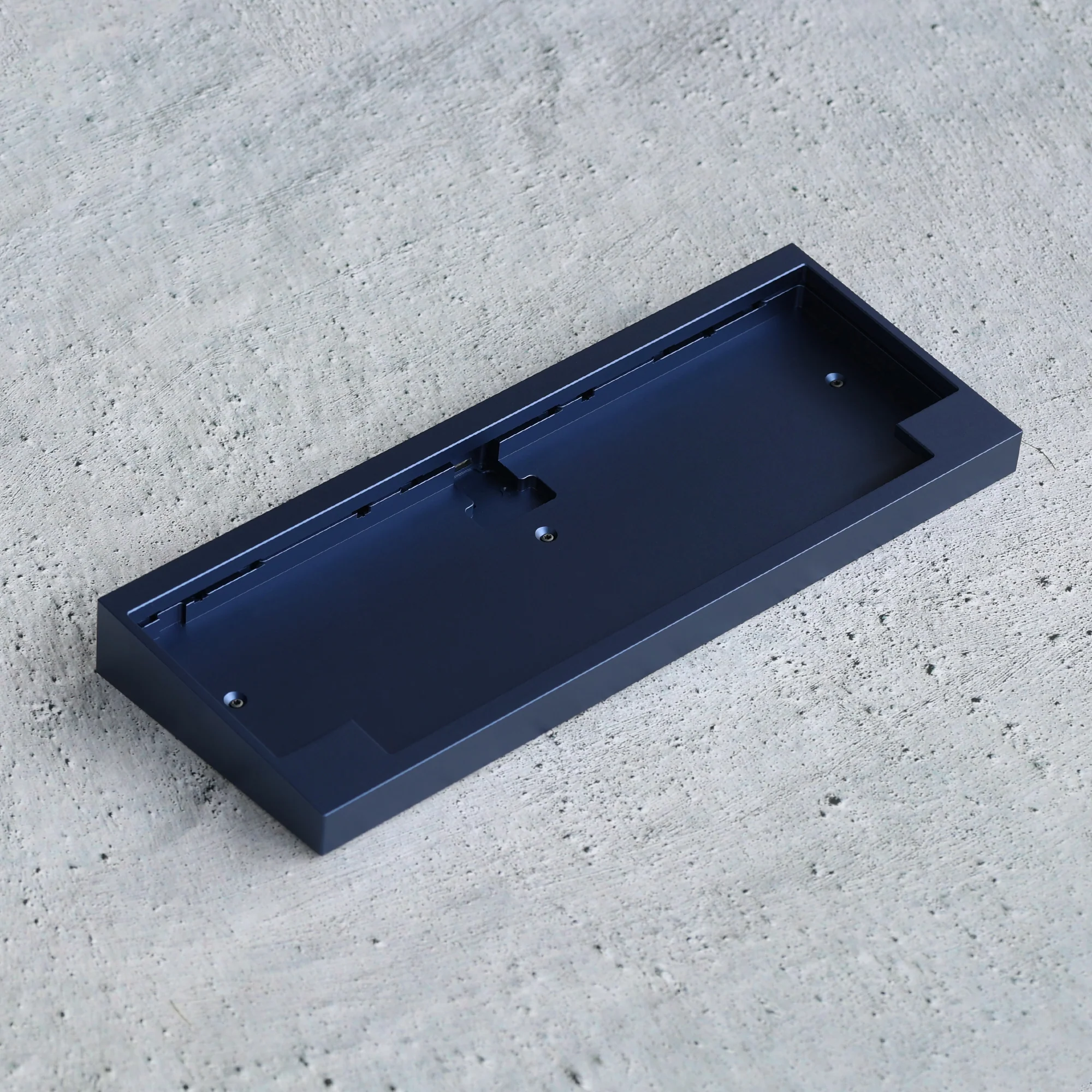

  • Case material: Aluminum (anodized and electrostatically coated process)
  • Plate: PC/ Aluminum/ FR4/ Carbon fiber plate

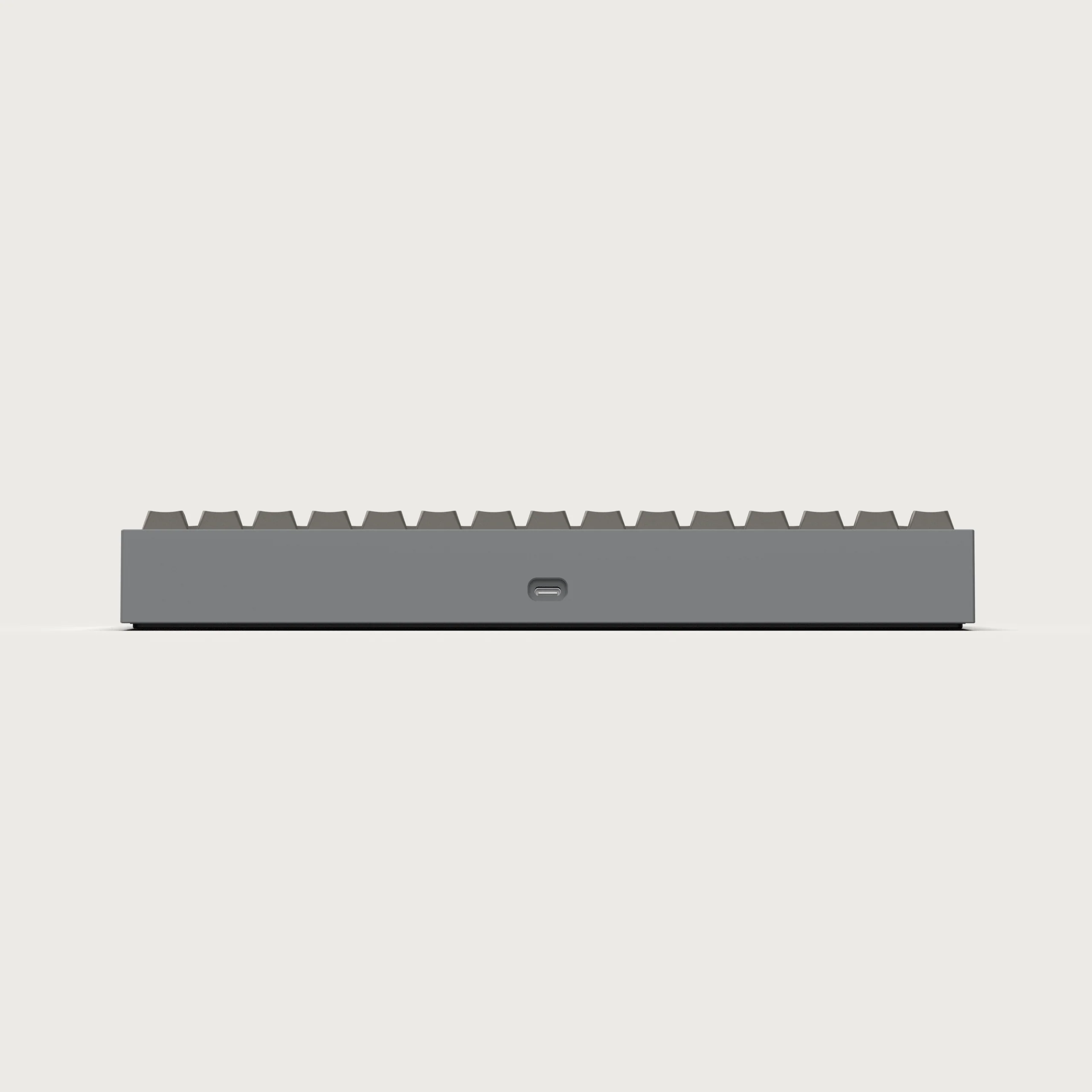

  • PCB: 1.2 mm Flex cut Hot-swap PCB/1.2 mm Non-Flex cut Solder PCB, QMK firmware, VIA support, without per-key RGB, USB-C port, with daughterboard+JST cable

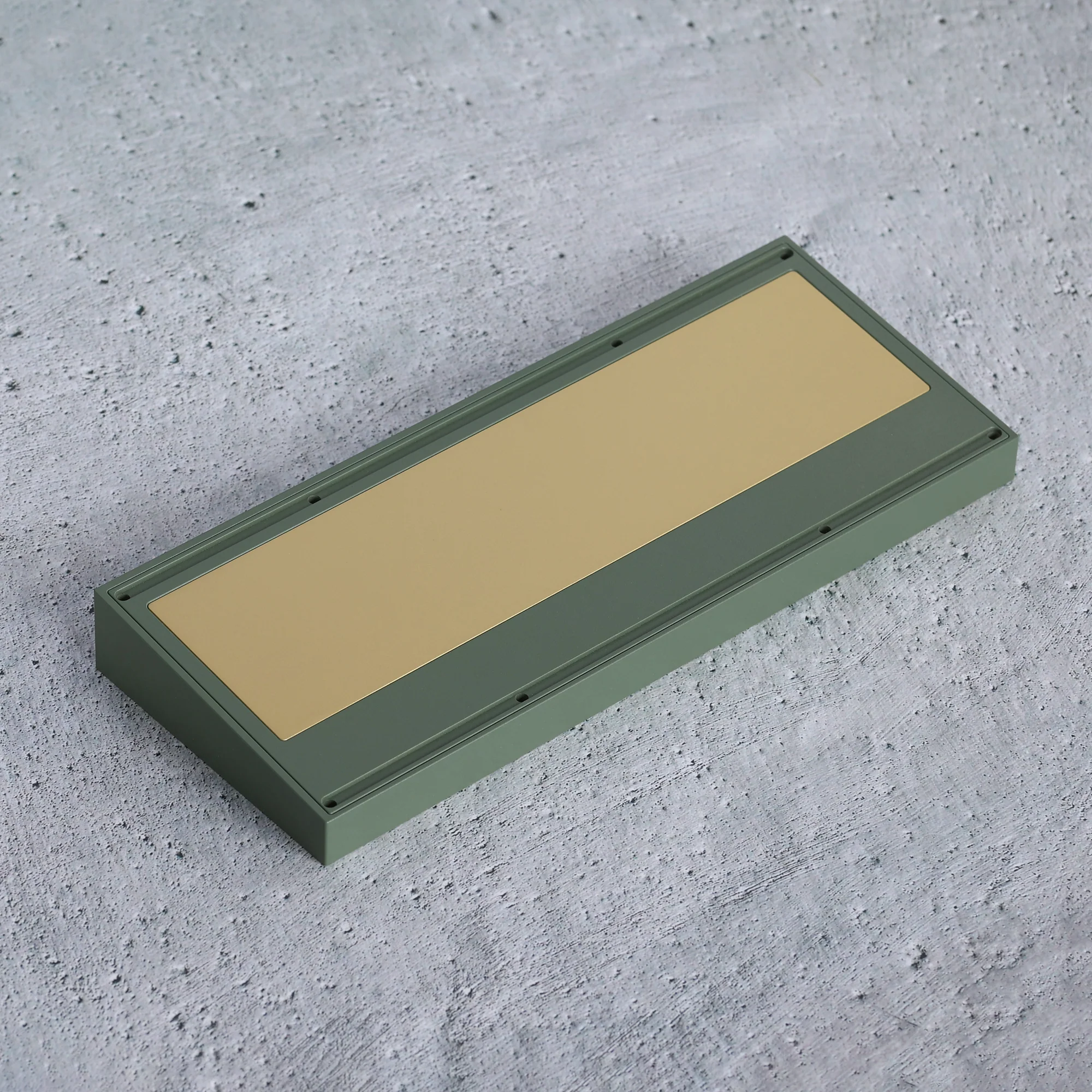

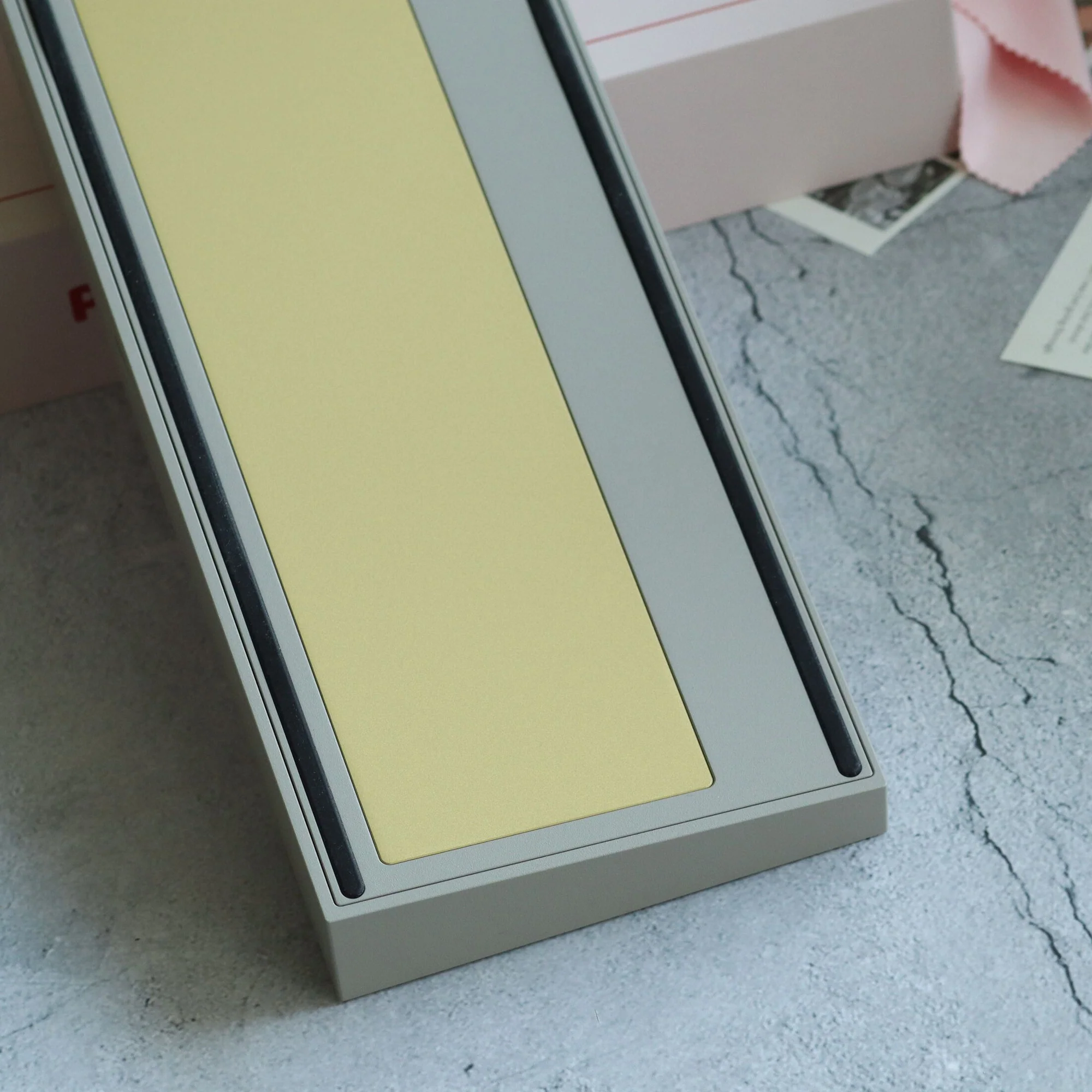

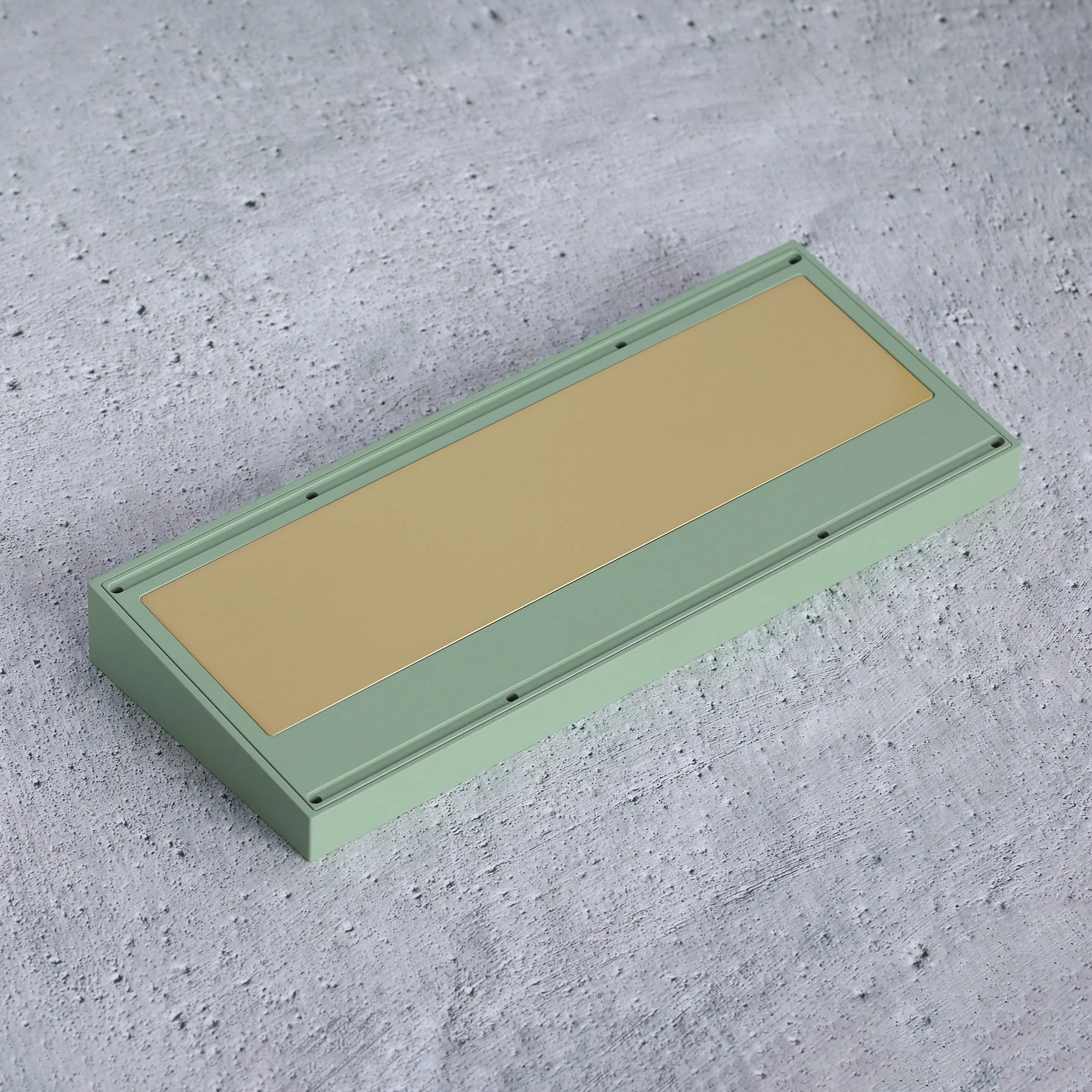

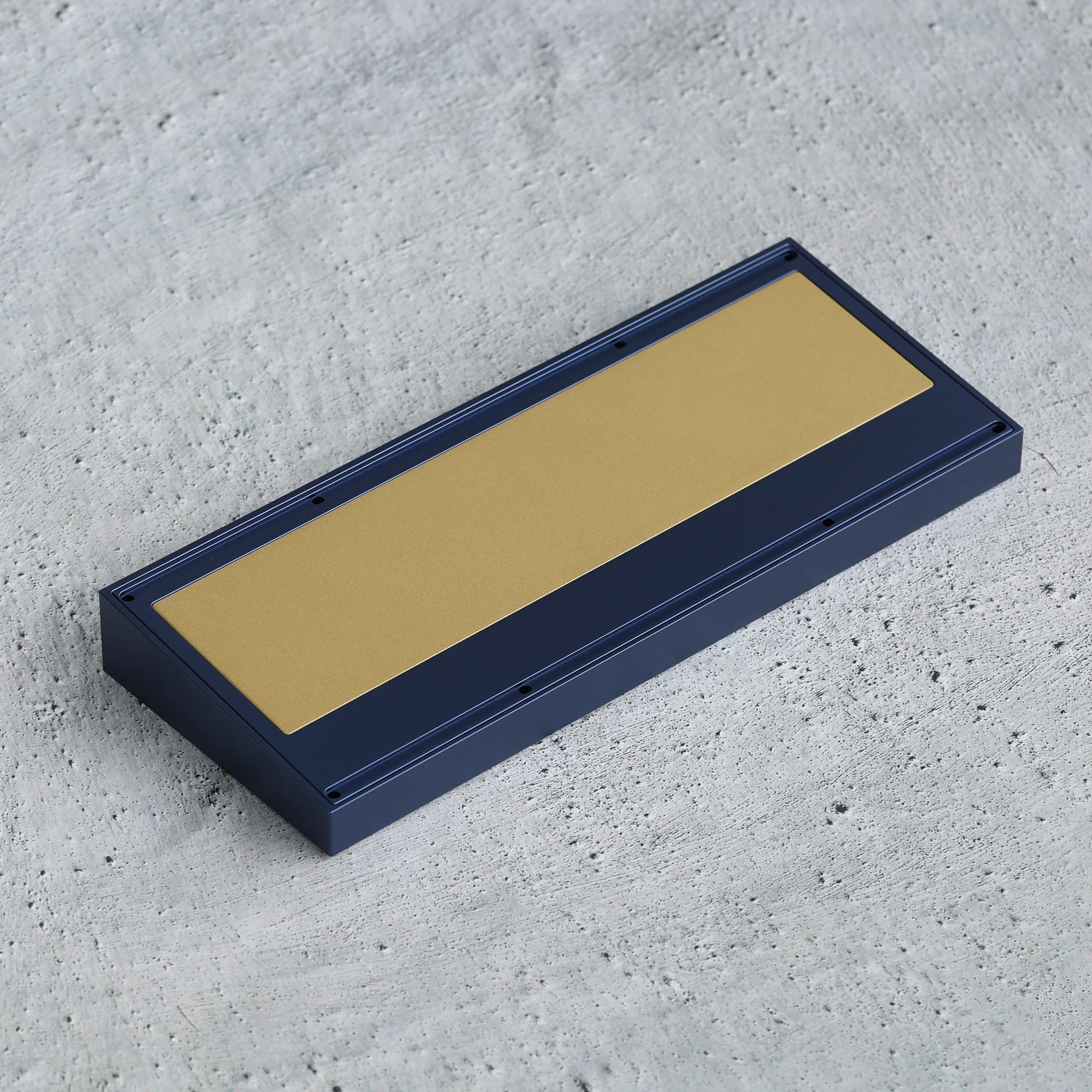

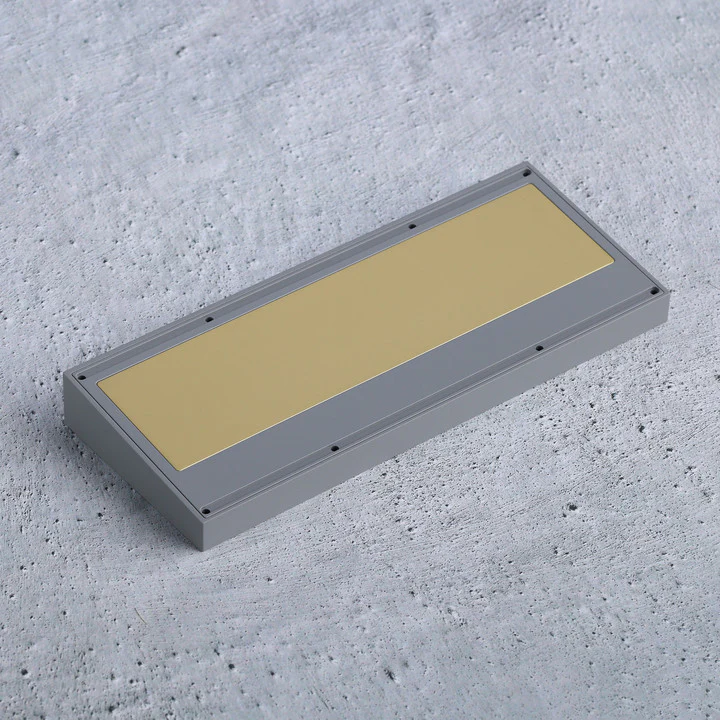

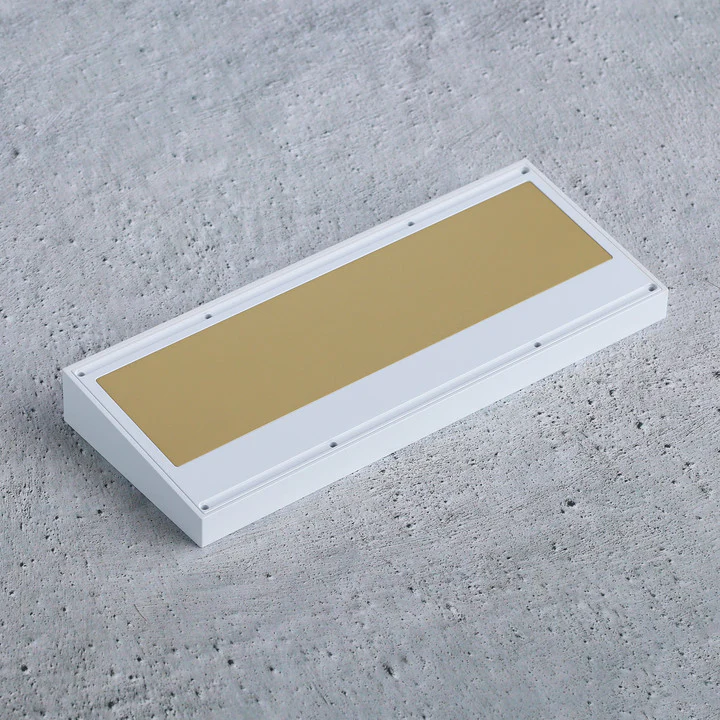

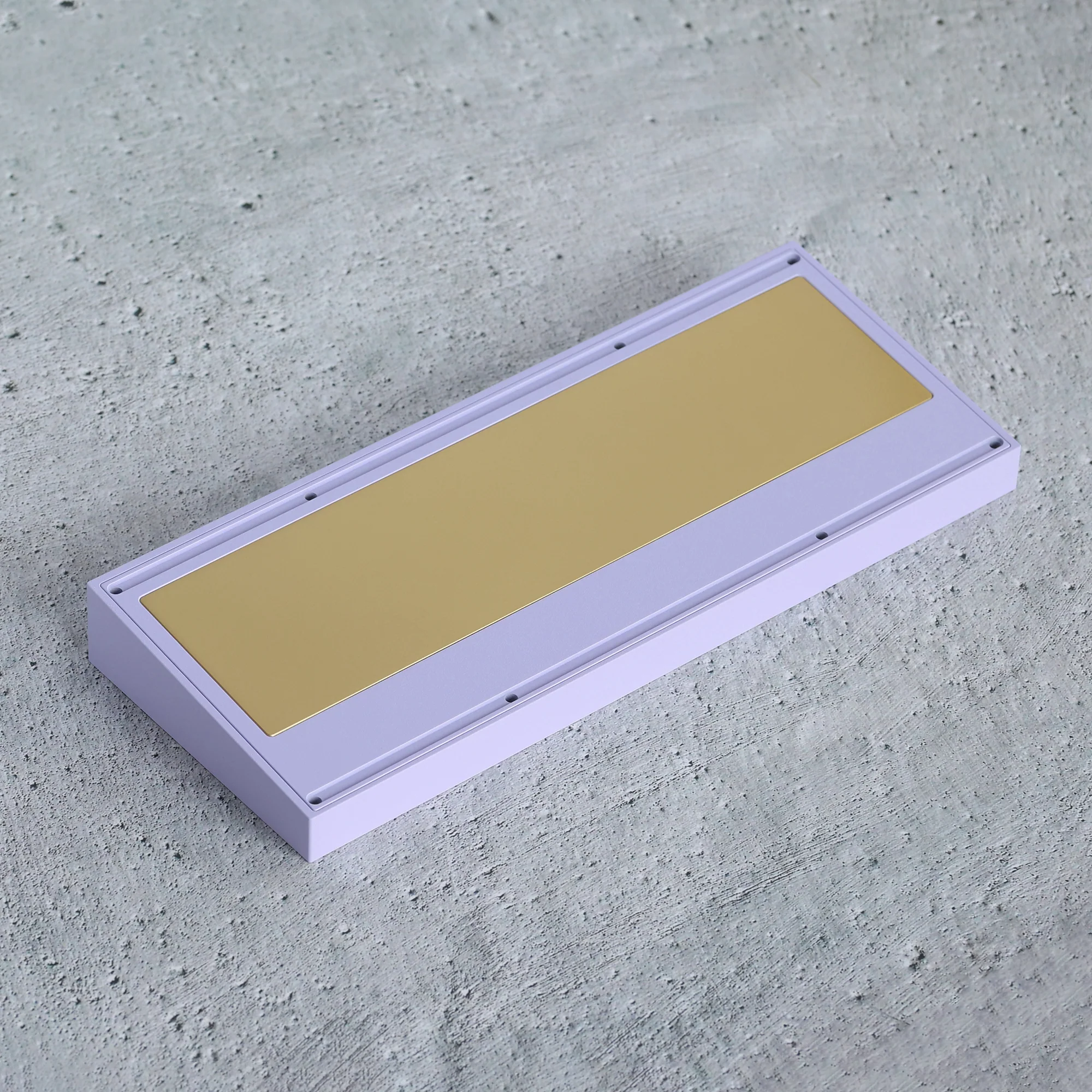

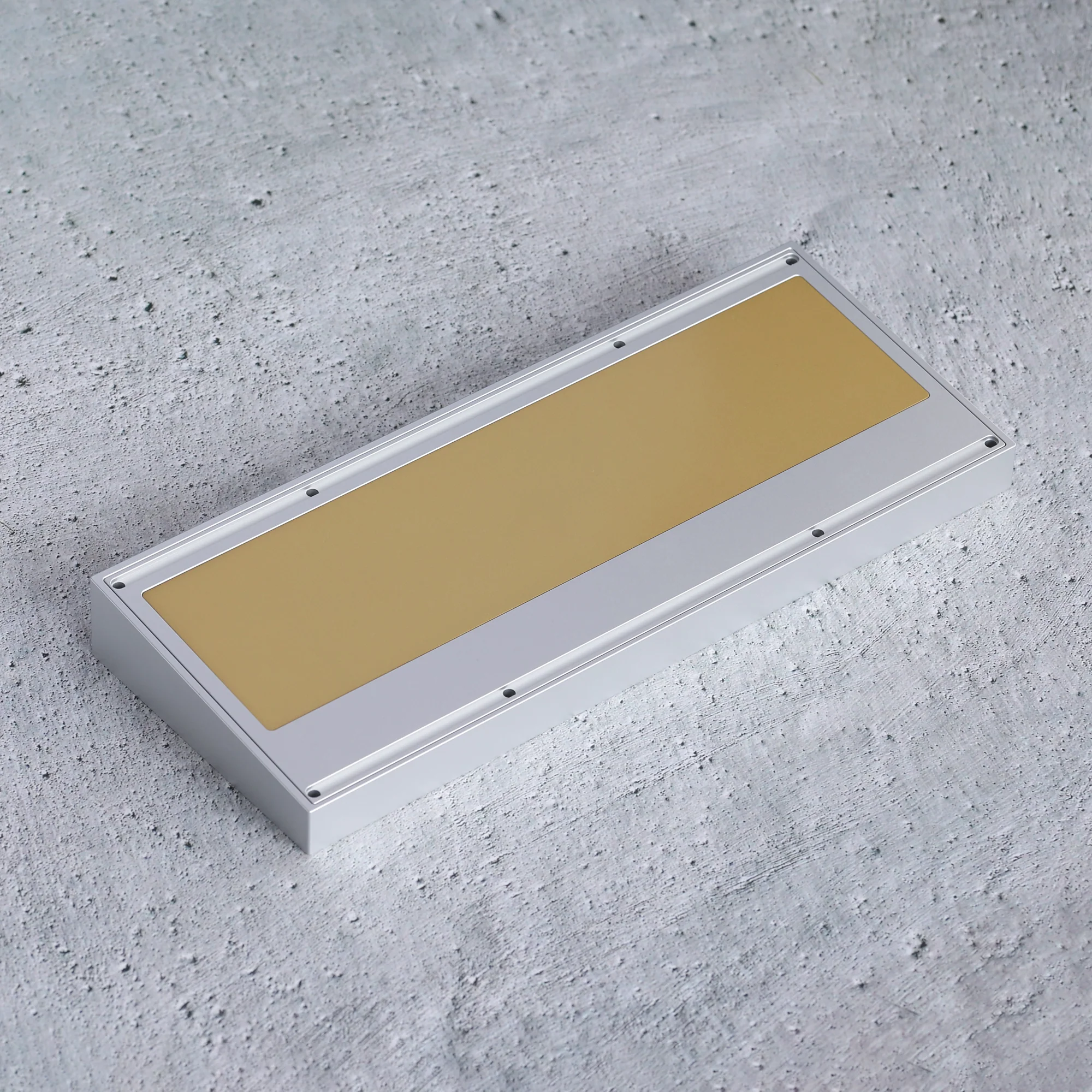

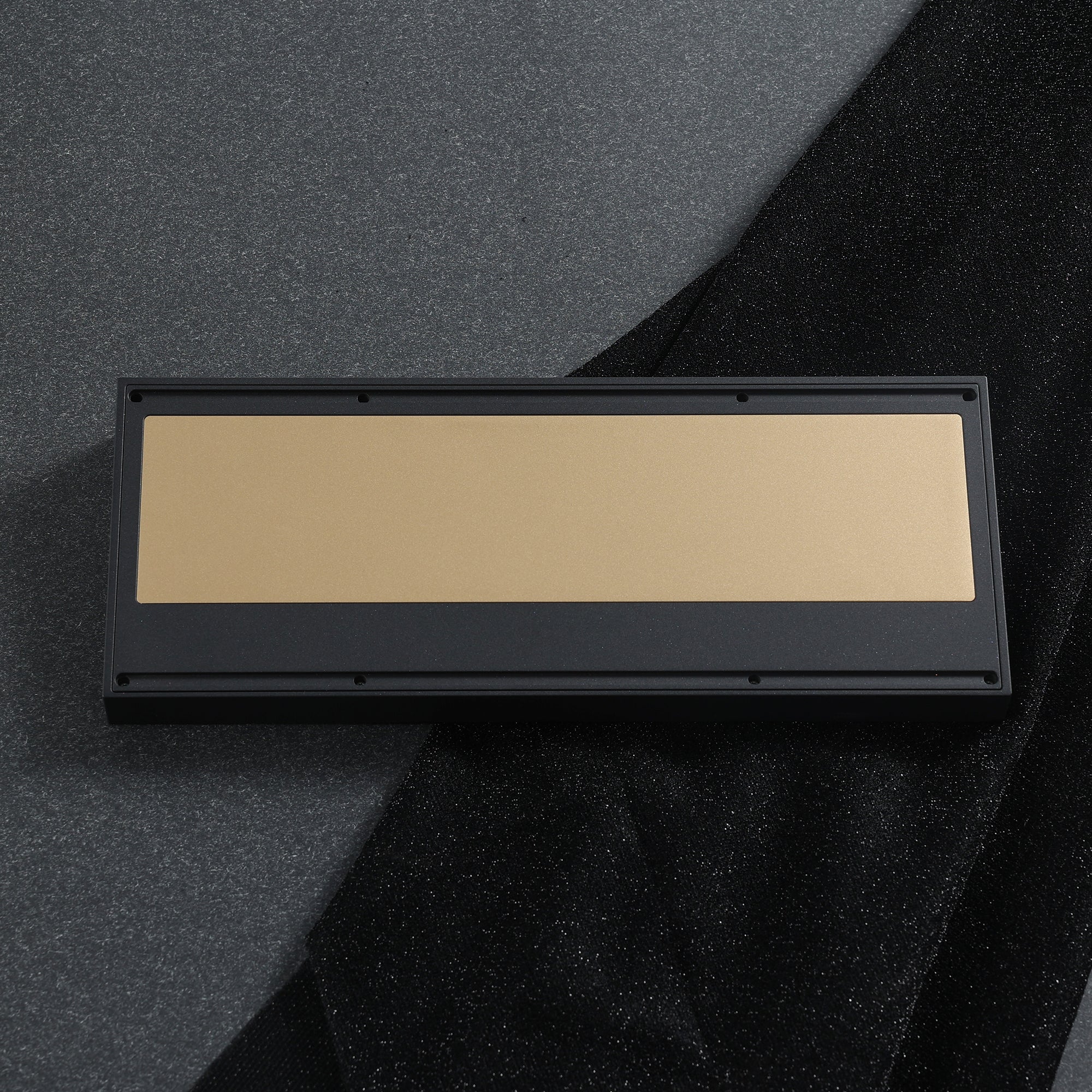

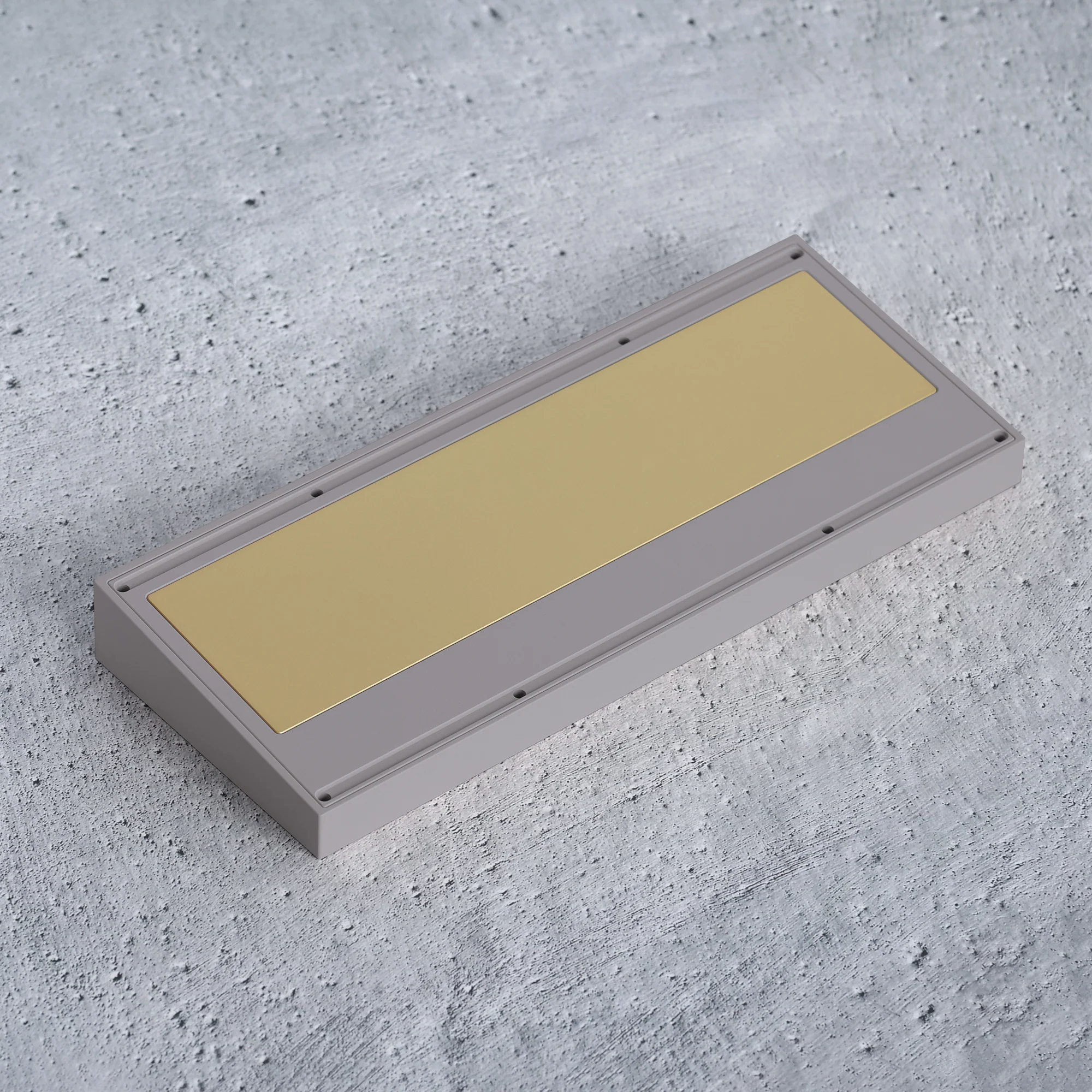

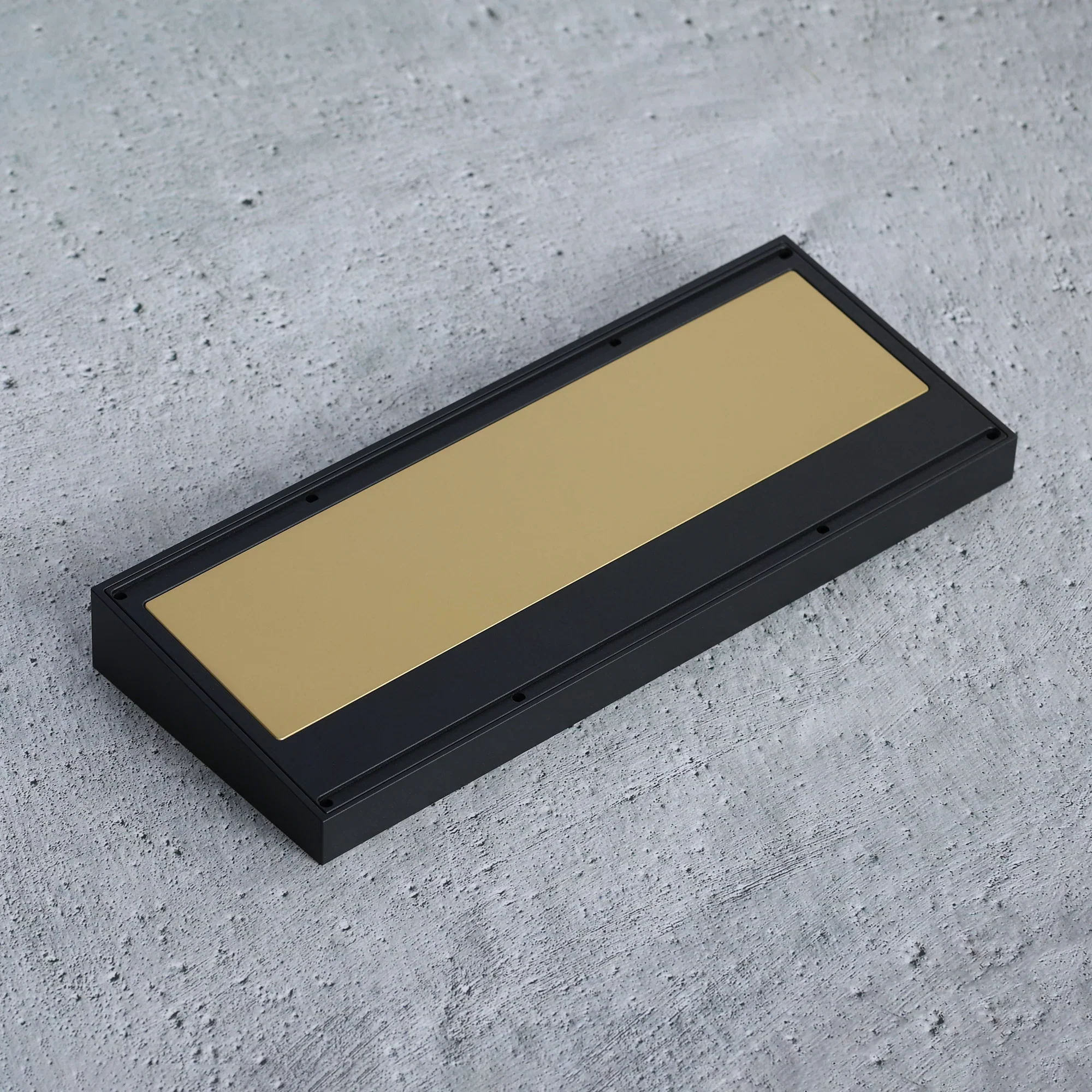

  • Weight bar: Brass material (transparent E-coating after sandblasting process)
  • Structure: Top mount, silicone socks, silicone bowl (3 types of structural support)
  • Weight: ≈1.4 kg before assembly
  • Dimesion: 294.7 mm (length) x 115.7 mm (width) x 18.5 mm (front) x 32.5 mm (back)
  • Feature: The detachable silicon feet hiding all the screws at the bottom

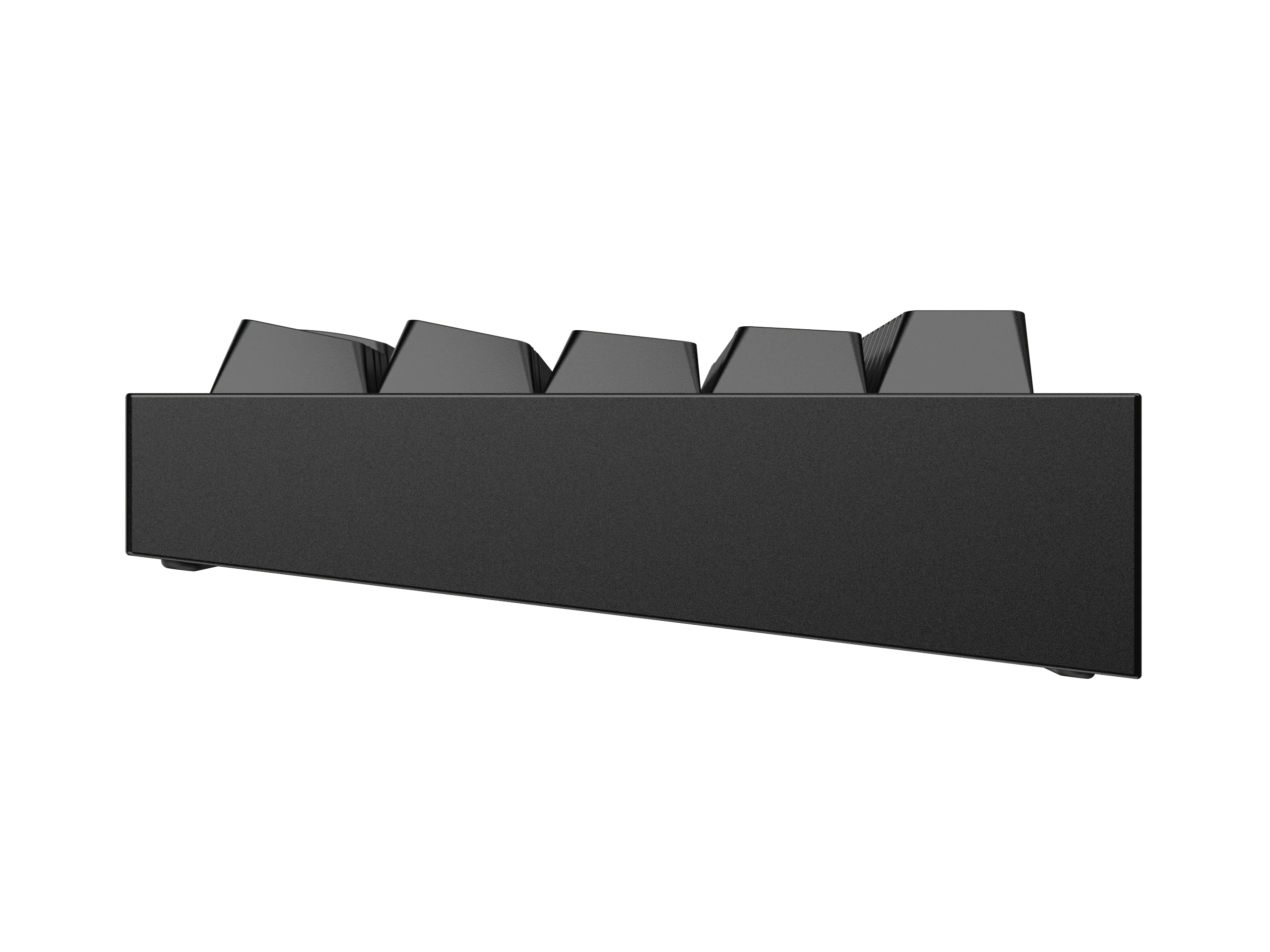

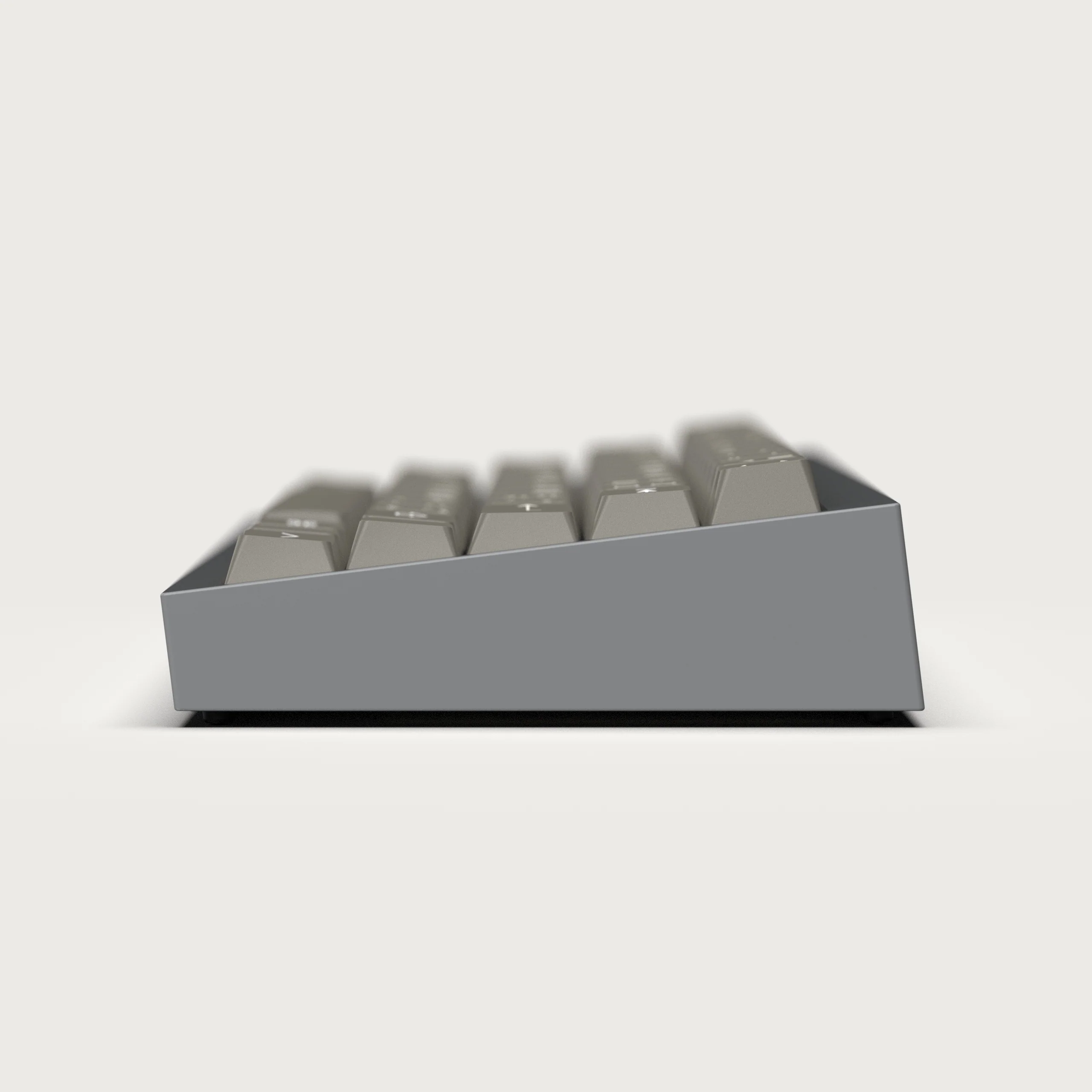

  • Typing angle: 7°
  • Design by KBDfans
  • Made in China

Include

Price $109 includes below items:

  • Aluminum top and bottom case x1

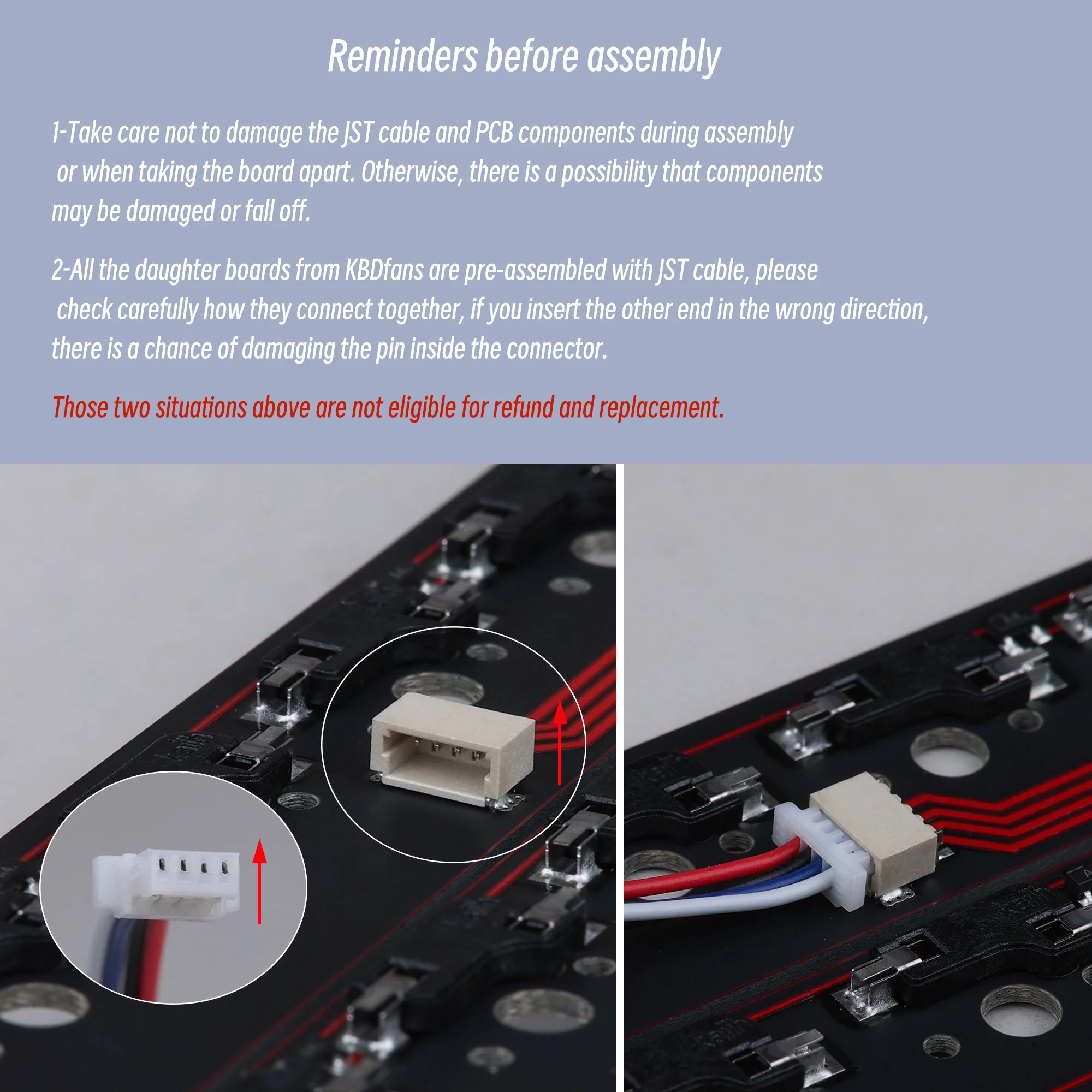

  • USB-C daughterboard and JST cable x1
  • Brass weight x1
  • Screws for top mount x1 set
  • Silicone bowl (poron cotton for silicone bowl structure) x1 set
  • Silicone socks x1 set
  • Foam kit (Case foam x1, PCB foam x1, EVA switch pad x1)
  • Cherry screw in stabilizers x1 set
  • Rubber feet x1 set
  • screws 1 set

The following accessories should be purchased separately and added to the cart with the kit together:

  • 1.2 mm Flex cut Hot-swap PCB x1 (+ $50 USD) or
    1.2 mm Non-Flex cut Solder PCB x1 (+ $45 USD)
  • Plate x1 (+ $19 USD)

Dimension

Update

  • Tofu60 2.0 WK White Case will arrive around Mar 10th (2024-2-21)
  • The pre-order colors will ship around Jan 25th(2024-01-12)
  • The pre-order colors will ship around the end of June (2023-06-08)

Layout

Solder version and hot-swap version kits have same layout

Extra optional accessories

Building tutorial

Firmware

Disclaimer

About the case:

1. Keyboard case - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

2. Brass weight - If you see any resemblance of marks or foreign material under 2 mm (tool marks, stain, dent, sand mark, scratch, etc.), you're not eligible for Return & Refund.

3. Case interior - Based on the production method of anodizing and spraying, the product can lead to some smearing at the surface level, and you'll see some hook marks within the case. Also, the spraying process can not guarantee that the color will look 100% the same on the internal case corners. The color off on the interior case and the interior corners are not eligible for Return & Refund.

4. About the potential coating defects: Because the Faraday cage exists for this type of production method, it's going to be hard to coat the Interior corners perfectly. Insead of kill all the smoothness on the case coating, the interior painting job won't be as perfect as the exterior's.

Attention:
-Make sure to QC your keyboard case and weight before building it. For any issues besides the three above, please get in touch with our customer support agents to get help.
-For anything built is not eligible for Return & Refund.

Click for more

Videos

Features

60% Layout

Programmable and supports multiple layouts



Multiple colors

New Mounting style

Brass Weight

7° typing Angle

Hot-swap PCB

Supports multiple layouts

1.2 mm thickness with flex cuts

Open source QMK firmware that supports VIA online configurator

3 layouts available

HHKB

WKL

WK

New design with 3 different mounting styles

Tofu60 2.0 continues the design of the first generation. KBDfans does upgrade the structure this time.

The 2.0 version supports three different mounting styles: Top Mount, Gasket Mount, Silicone bowl Gasket mount（Available in 3 different hardness silicone bowls）, which meant to provide three different typing experiences on one keyboard.

Top mount

Silicone bowl gasket

Silicone socks gasket

Explosion Diagram

Tofu60 2.0

Pictures
